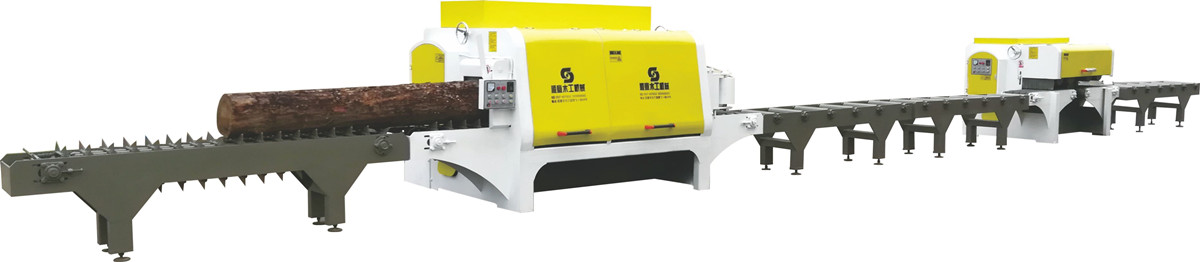

Log Multi Rip Saw Machine
|
|||||||||||||||
| Product Detail |
Log Multi Rip Saw Machine / Log Multi Blade Saw Machine is a powerful woodworking machine used for ripping or cutting multiple pieces of wood from a single log simultaneously. It is commonly used in sawmills and woodworking factories to increase productivity and efficiency in the wood cutting process, which is based on the tranditional Multi Rip Saw made in Europe for spliting square lumber or plank into smaller planks.
It has the function of automatic-centering, which is suitable to get square lumber and cut-to-size out of log whatever the log is long or short.
After years growth and generations updated, our machines are becoming more and more stable and durable. it is a perfect alternative for processing different kinds of wood, like Pine,Albasia, Eucalyptus, Boxwood, Rubber wood...... most of softwood and hardwood.
Whatever you are a sawmill of blockboard, barecore, laminated board, finger jointed panel and other solid wood products, I strongly recommend our Round Log Multi Blade Rip Saw to be the important roles in your sawmill.
|
Model Name |
MJY 4-12 |
MJY 6-16 |
MJY 8-18 |
MJY8-20 |
MJY12-25 |
MJY15-30 |
MJY20-35 |
MJY20-40 |
MJY30-50 |
|
ProcessingLength |
40-200cm |
50-200cm |
50-200cm |
50-200cm |
50-200cm |
80-400cm |
80-400cm |
80-400cm |
80-400cm |
|
Processing Diameter |
4-12cm |
6-16cm |
8-18cm |
8-20cm |
12-25cm |
15-30cm |
20-35cm |
20-40cm |
30-50cm |
|
Axis Specification |
DN50 |
DN50 |
DN50 |
DN50 |
DN60 |
DN60 |
DN60 |
DN70 |
DN100 |
|
Axis Speed |
4200r/min |
4200r/min |
4100r/min |
4000r/min |
3800r/min |
3600r/min |
3000r/min |
2800r/min |
2000r/min |
|
Main motor power |
15kw*2 |
18.5kw*2 |
18.5kw*2 |
22kw*2 |
27kw*2 |
30kw*2 |
37kw*2 |
45kw*2 |
75kw*2 |
|
Feeding motor power |
0.55kw |
0.55kw |
0.55kw |
0.55kw |
1.1kw |
1.1kw |
2.2kw |
2.2kw |
4kw |
|
Feeding speed |
6-10m/min (adjustable) |
6-10m/min (adjustable) |
6-10m/min (adjustable) |
6-8m/min (adjustable) |
6-8m/min (adjustable) |
6-8m/min (adjustable) |
6-8m/min (adjustable) |
6-8m/min (adjustable) |
6-8m/min (adjustable) |
|
Saw blades specification (mm) |
210*2.0/1.6*50 |
255*2.2/2.6*50 |
280*2.4/1.9*50 |
305*2.4/1.9*50 |
355*3.0/2.4*60 |
405*3.4/2.6*60 |
455*3.6/2.8*70 |
550*4.0/3.2*80 |
700*6.8*100 |
|
Cooling water pressure |
0.3-0.6Mpa |
0.3-0.6Mpa |
0.3-0.6Mpa |
0.3-0.6Mpa |
0.3-0.6Mpa |
0.3-0.6Mpa |
0.3-0.6Mpa |
0.3-0.6Mpa |
0.3-0.6Mpa |
|
Oversize (cm) |
310*140*145 |
310*140*145 |
330*145*152 |
330*145*152 |
360*160*170 |
360*160*170 |
|
|
|

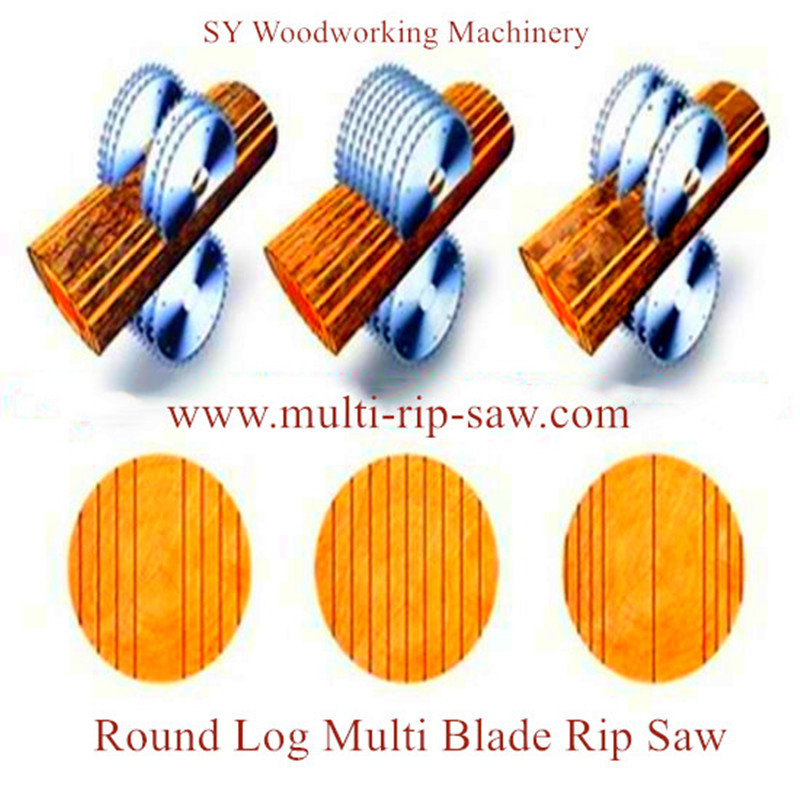

Sawing Models:

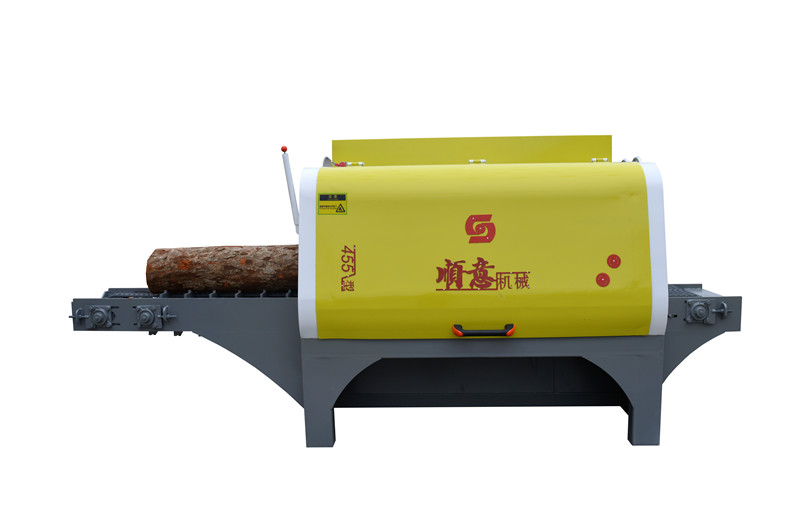

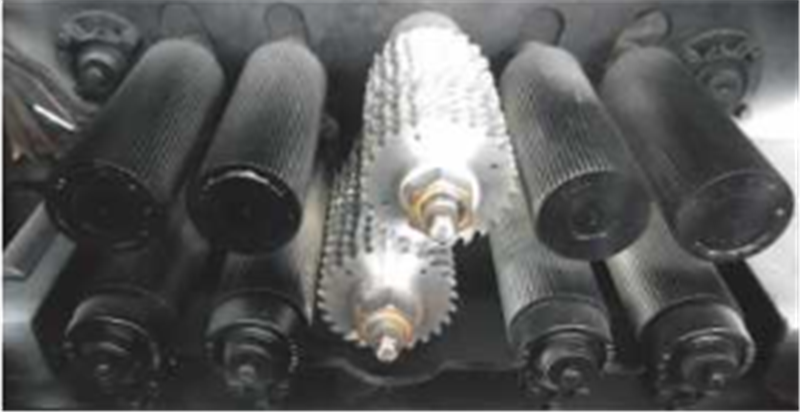

Inside Structure:

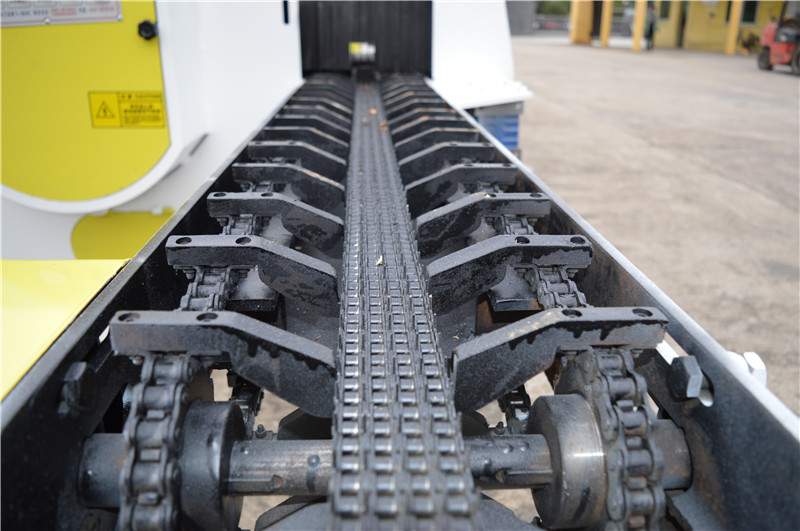

Feeding System:

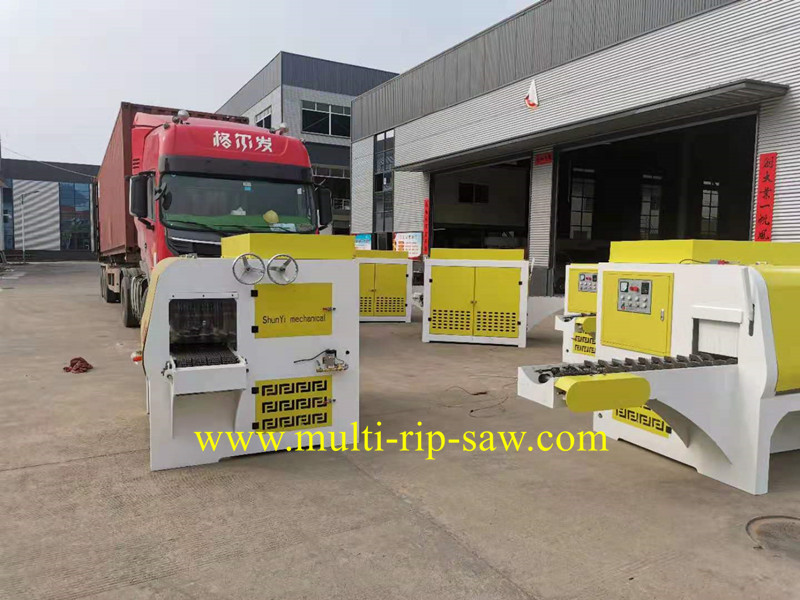

Delivery:
Welcome to visit the videos of our machines on youtube:
1. https://www.youtube.com/watch?v=xCgBEizOc8M&t=24s&pbjreload=101
2. https://www.youtube.com/watch?v=U35ScWHLook
3. https://www.youtube.com/watch?v=MNvVp9k7cGo
Note: We offer custom services as your real requirements, welcome to contact us anytime.
