Manul Edge Trimming Saw / Manul Board Edger
|
|||||||||||||||
| Product Detail |
The Edge Trimming Saw or Board Edger is a wood saw machine for trimming bark and edge from board processed by log multi rip saw. Its structure is simple and stable, a shaft with a group of saw blades driven by a small motor cut boards fast and smooth, a laser device is helpful for workers to get things done easily.
There are Three different styles of Board Edger.

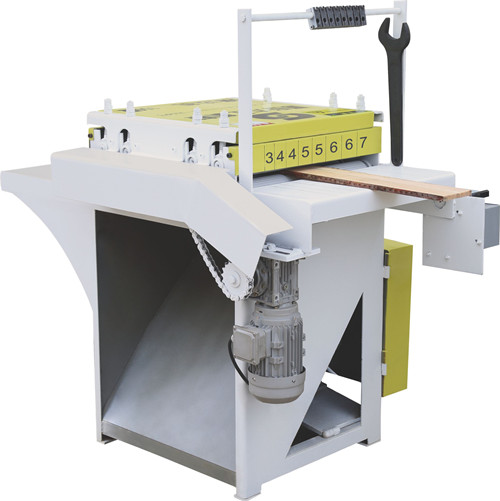

1. Simple Style:
| Model: | MJQ 3-40 (Customzied) |
| Processing Length: | 30-100cm |
| Processing Thickness: | 05.-2.5cm |
| Processing Width: | 3-40cm |
| Working Platform Width: | 50cm |
| Main Axis Specification: | DN40 |
| Main Axis Rotating Speed: | 4500r/min |
| Main Motor Power: | 4kw |
| Feeding Motor Power: | 0.55kw |
| Feeding Speed: | 13m/min |
| Saw Blades Specification | 150*2.0/1.5*40 |
| Overall Size: | 136*83*125cm |

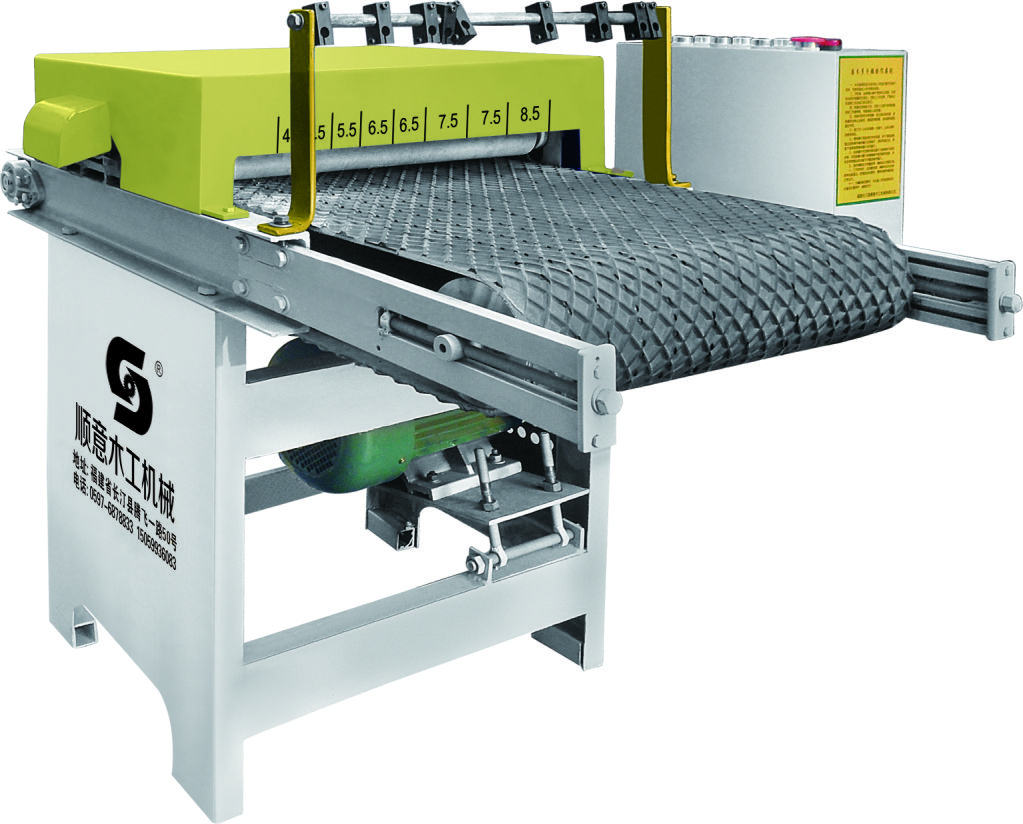

2. Crawler Style:
| Model: | MJQ 3-60 (Customzied) |
| Processing Length: | 30-200cm |
| Processing Thickness: | 05.-2.5cm |
| Processing Width: | 3-60cm |
| Working Platform Width: | 60cm |
| Main Axis Specification: | DN40 |
| Main Axis Rotating Speed: | 4500r/min |
| Main Motor Power: | 5.5kw |
| Feeding Motor Power: | 0.55kw |
| Feeding Speed: | 13m/min |
| Saw Blades Specification | 150*2.0/1.5*40 |
| Overall Size: | 136*83*125cm |

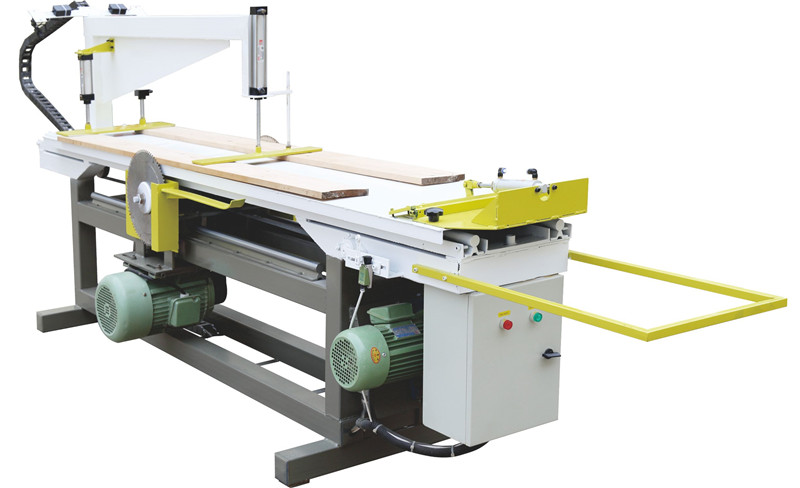

3. Edge Trimming Saw for Free Wdith Board
| Model: | MJQ 5-25 BD |
| Processing Thickness: | 1.8-2.5cm |
| Processing Length: |
100-300cm |
| Main Motor Power: | 5.5kw |
| Feeding Motor Power: | 0.75kw |
| Saw Blade Specification: | 305*2.4*40mm |
1. https://www.youtube.com/watch?v=zSyd30zvusg&t=2s
2. https://www.youtube.com/watch?v=_tEL2l7ZWEw
We offer customized services as your real requirements, Please feel free to contact us.
